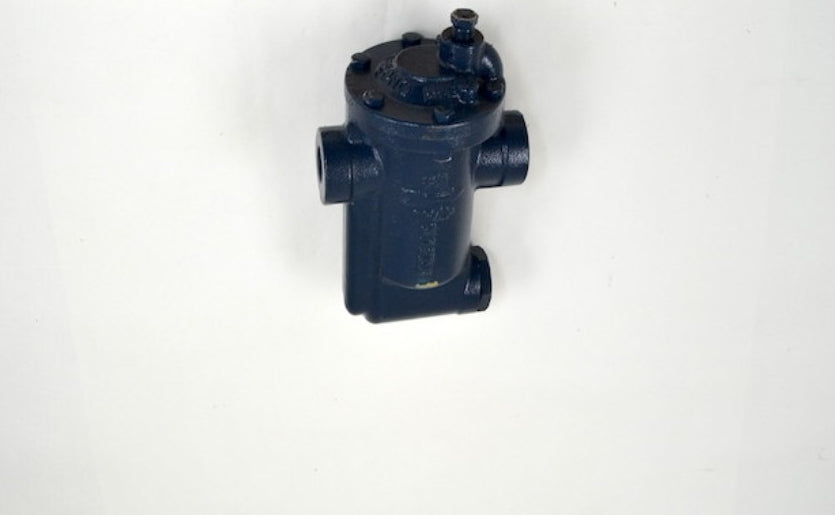

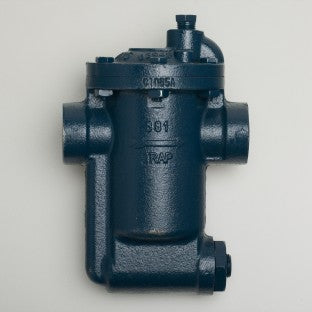

Armstrong 881 Inverted Bucket Steam Trap With Thermic Vent
The Armstrong series 881 inverted bucket steam trap with thermic vent is an economical solution for steam process equipment and comes standard with an integral strainer. Best suited for high pressure drip locations and laundry equipment, after initial prime air and condensate is vented from the orifice after condensate accumulation causes the bucket to fall. All Armstrong inverted bucket steam traps are repairable for even bigger operational savings.
The series 881 is suitable for pressure ratings up to 250 PSI and condensate flows up to 1,050 lbs/hr.
- Trap has a 5" face to face dimension
- Available in sizes 1/2", 3/4", and 1"
- Available in pressure ratings 15 PSI, 30 PSI, 70 PSI, 125 PSI, 200 PSI, 250 PSI
- Integral strainer for removal of dirt and sediment integral to trap body
- Optional thermic vent for quicker venting of air and reduced warm-up time
Armstrong Series 881 Inverted Bucket Steam Trap Specification
